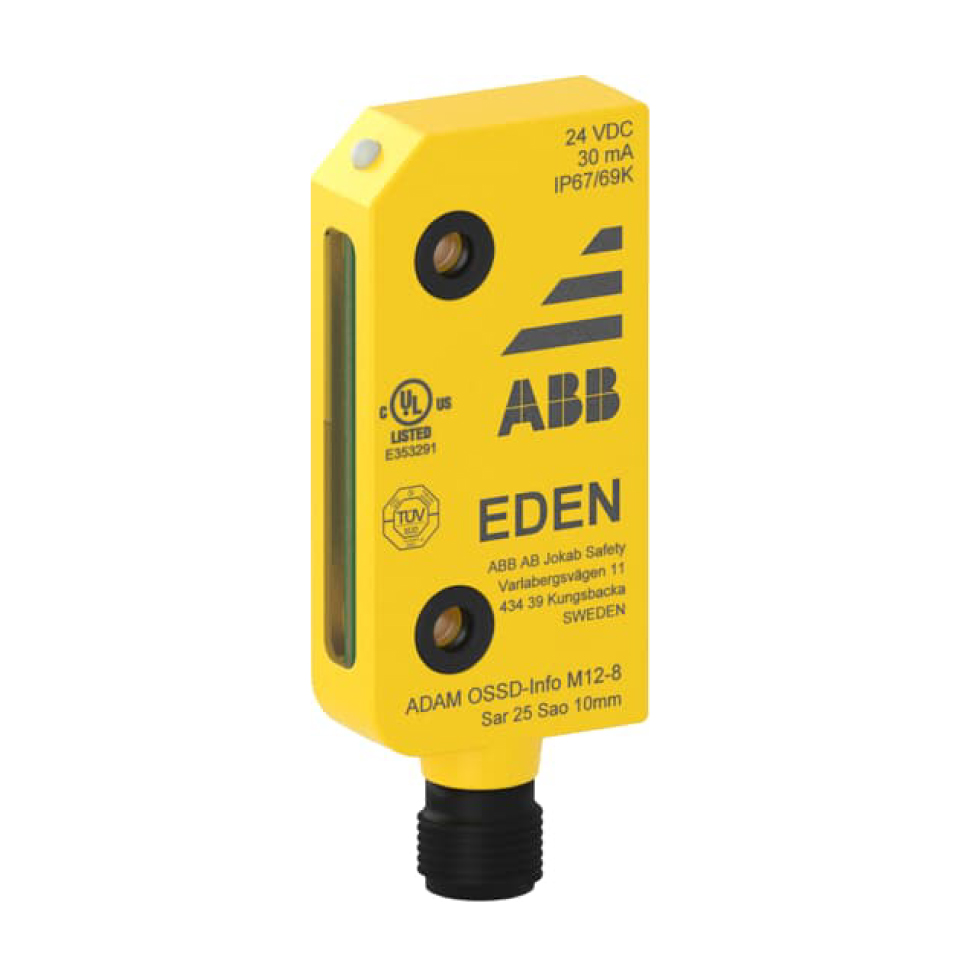

2TLA020051R5700 ABB Jokab Safety Adam OSSD-Info M12-8 Sensor

2TLA020051R5700

ABB Jokab Safety Adam OSSD-Info M12-8 Sensor

Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring.

Adam safety sensor with OSSD signals and information output. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-8 male connector. Four pieces of DA 1B distance plates and four pieces of DA 2B distance rings are included.

Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.

Eden is UL approved for use in US and Canada.

หมวดหมู่:

2TLA020051R5700

ABB Jokab Safety Adam OSSD-Info M12-8 Sensor

ABB Non-Contact Safety Switch, 15mm Switching Distance, M12 Thread – OSSD Series – 2TLA020051R5700 Adam OSSD-Info M12-8



Choose this non-contact safety switch from ABB to keep your machines working safely. It’s suitable for use with any safety module that handles OSSD signals and emits coded RF signals to automatically activate protective measures when the sensors move too far apart. The unit’s small 15mm switching distance makes it ideal for managing safety devices in compact applications. With a single M12 threaded connection, it’s compatible with standard industrial appliances and installation is simple.



Features & Benefits



• Response time of under 30ms ensures fast activation of safety devices for maximum protection
• LED diagnostics keep you informed on the status of your machinery for quick troubleshooting
• IP69K rating signals total protection against dust and water submersion, so the device will device perform effectively in harsh environments



Applications



• Processing plants
• Packing industry
• Automotive manufacture
• Automated assembly lines



Is this safety switch protected against impact?



Yes, tough PBT housing protect this safety switch against impacts. Its epoxy moulding provides a strong bond between its parts, making it a reliable option for intense applications.

The unit

คุณสมบัติ Value
Supply Voltage 24V dc
Housing Material Polybutylene Terephthalate (PBT)
Connection Type M12
Actuator Type Coded
Actuator Included No
Range Eden
Series OSSD
Switching Distance 15 mm
IP Rating IP67, IP69K
Supply Current 30mA
Standards Met CE, cULus Listed, EN 60204-1:2006+A1:2009, EN 60664-1:2007, EN 60947-5-3:1999+A1:2005, EN 61000-6-2:2005, EN 61000-6-4:2007, EN 61508:2010, EN 62061:2005/A1:2013, EN ISO 12100:2010, EN ISO 13849-1:2008/AC:2009, EN ISO 14119:2013, TUV
Width 12mm
Depth 30mm
Length 60mm
