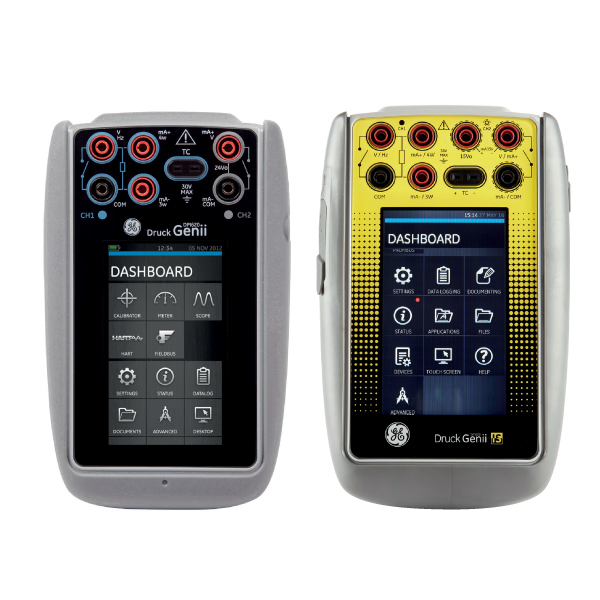

Ge Druck Pressure Calibrators Dpi 620 Genii Series
Ge Druck Pressure Calibrators Pneumatic Pressure Generating Station Vacuum
Ge Druck Pressure Calibrators Dpi 620 Genii 2
Ge Druck Pressure Calibrators Dpi 620 Genii

GE Druck DPI620G-FF

GE Druck DPI620G-FF

Advanced Modular Multifunction Calibrator with HART/Fieldbus Communicator

Product Features:

  • Provides highest accuracy for measuring, sourcing and simulating electrical, frequency, temperature and pressure
  • Logs up to 6 channels for simultaneous measurement and sourcing of mA, V, Ohms, frequency, pressure, RTDs and T/Cs, HART, Fieldbus
  • Calculates errors between inputs and outputs
  • Large (4.3 in.) color LCD display with touchscreen and improved daylight readability
  • Pressure system generates up to 1500 psi (100 bar) pneumatic and 15,000 psi (1000 bar) hydraulic pressures
  • HART and Foundation Fieldbus digital communication with complete device description libraries and internal modems
  • Modular design for easy range expansion with interchangeable pressure modules (sold separately)
  • UI Dashboard allows quick access to applications, including Calibrator, HART and Documenting
  • Internal mA loop power and communicator power hubs
  • 800 MHz Processor, 512 MB 800 MHz SDRAM, 4 GB internal flash memory
  • IP55 rated and CE Marked
  • Excels in multiple applications, including petrochemical, chemical, oil and gas, power, food, pharmaceuticals
หมวดหมู่: ,

The GE Druck DPI620G-FF Advanced Modular Multifunction Calibrator with HART Communicator is an easy to use, rugged, and highly accurate multifunction instrument for calibrating and maintaining process instrumentation. The DPI620G-FF model is equipped with a HART and Foundation Fieldbus communicators and provides world-class pressure measurement and generation. The calibrator offers simultaneous measurement and source capabilities for the setup, testing and calibration of most types of process instruments, including transmitters, transducers, gauges/indicators, switches, proximity detectors, counters, RTDs, thermocouples and valve positioners.

The modular design and functionality of the DPI620G-FF means it can be expanded over time and tailored to applications as needs change. The calibrator comprises four system components to provide the multi-functionality to perform duties formerly requiring a wide range of different instruments.

A Flexible Modular System

The GE Druck DPI620G-FF Genii Multifunction Calibrator comprises four system components to provide the multi-functionality to perform duties formerly requiring a wide range of different instruments. These system components are:

Re-Rangeable Pressure Measurement and Generation: DPI620G-FF Calibrator shown with PV62X Pressure Station and PM620 Pressure Module, both sold separately

  • DPI620G-FF – Genii Multifunction Calibrator with HART/Fieldbus Communicator
  • PM620 – Interchangeable Pressure Modules (Sold Separately)
  • MC620 – Pressure Module Carrier (Sold Separately)
  • PV62X – Pressure Generating Stations (Sold Separately)
