2TLA042022R4600 Magne 4 OSSD-Info Lock ABB Jokab Safety


Magne 4 OSSD-Info Lock ABB Jokab Safety

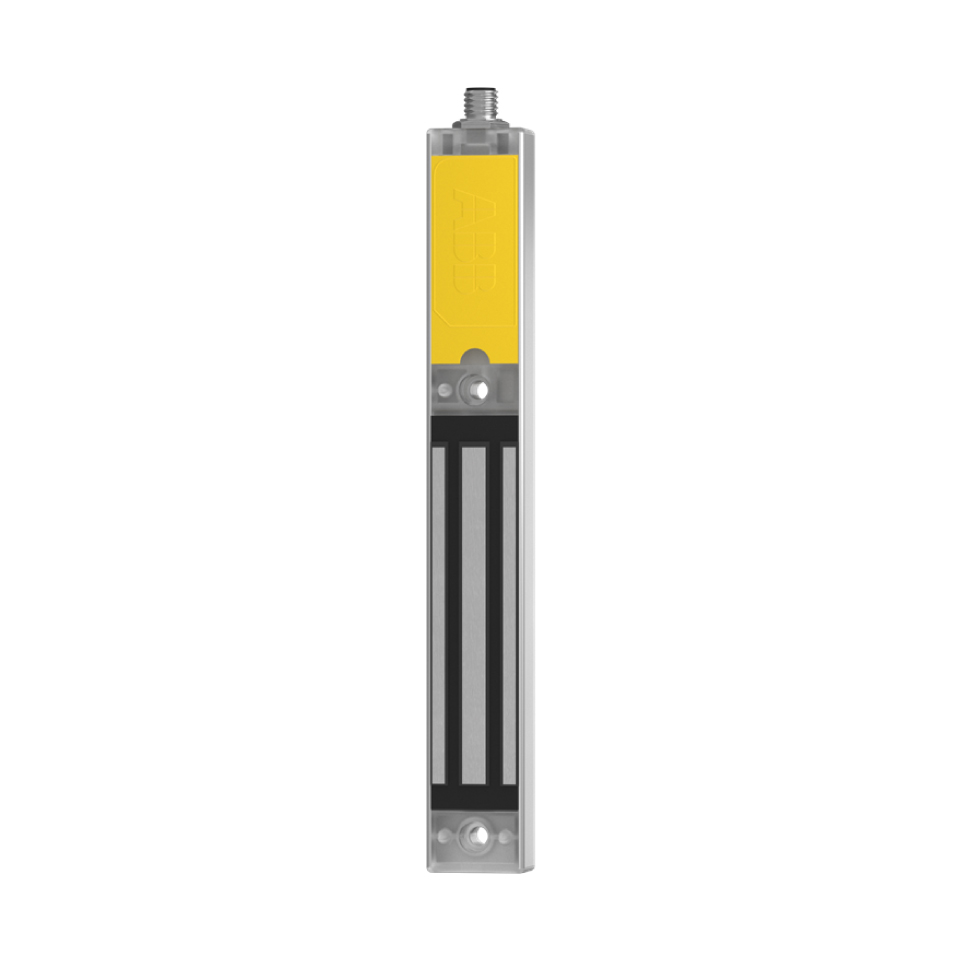

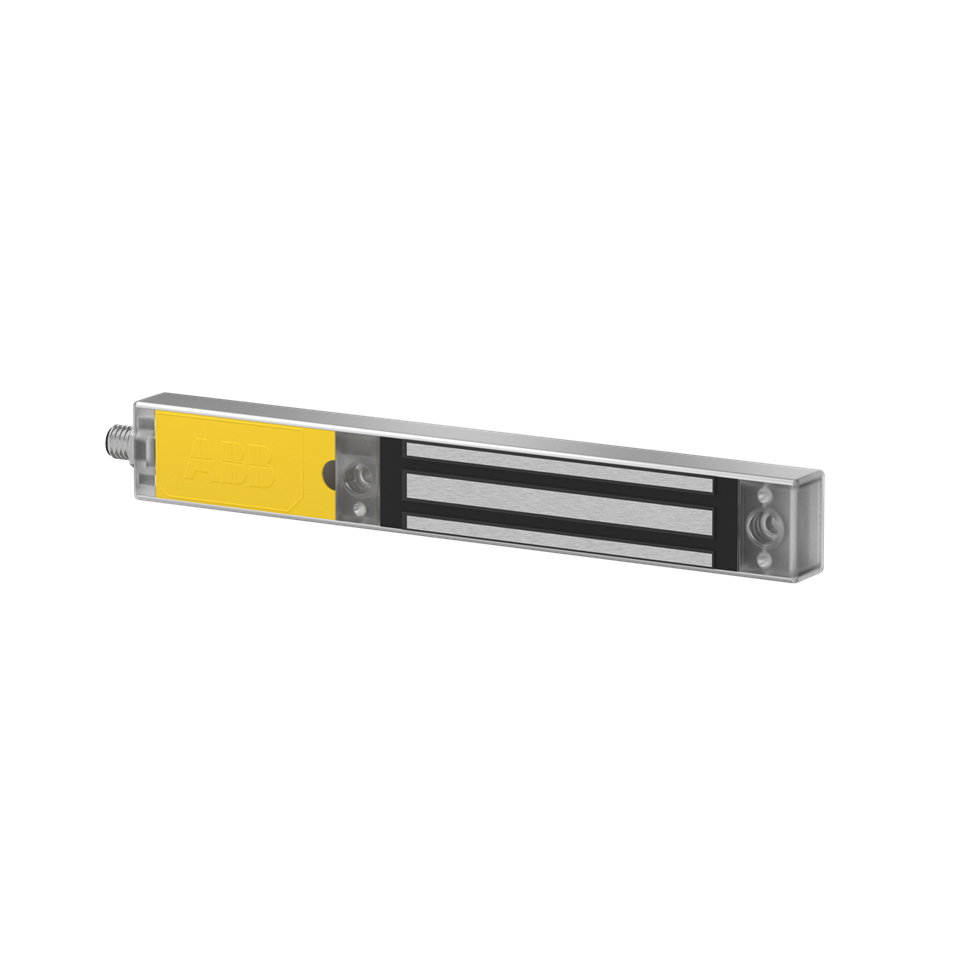

Magne 4 OSSD-Info is an electromagnetic lock providing safe interlocking thanks to an integrated ADAM OSSD-Info. Its M12-8 male connector facilitates connexion. A +24VDC voltage is used for the locking. The holding force is up to 1500N and the protection class IP67. A combined “Locked and Closed” information output is available.
The Eva actuactor and the anchor plate must be ordered separately.
Magne is an electromagnetic process lock intended for locking doors and hatches. It is usually used to prevent unwanted process interruptions, e.g. during a welding operation. With Adam and Eva, a PLe can be reached for the interlocking function.



Magne 4 OSSD-Info Lock ABB Jokab Safety

ABB Jokab Safety Interlock Switch, 1,500N Holding Force, M12 Thread – Magne Series – 2TLA042022R4600 Magne 4 OSSD-Info


Choose this safety interlock switch from ABB Jokab to keep operators safe around hazardous machinery. It prevents current from reaching your machine until protective measures like guards and gates are in force, ensuring necessary safety for workers. The interlock switch’s electromagnetic design features no moving parts to reduce mechanical wear and provide a long service life. With 1,500N of holding force, this unit is ideal for locking lightweight equipment.


Features & Benefits


• Narrow dimensions of 30mm (depth), 21.65 (width) and 274mm (height) to save space on busy control panels
• Ingress protection rating of IP67 means the switch is dust-tight and protected against limited submersion in water
• Powered by 24V DC supply, ensuring low power usage
• M12 threaded connector for wide compatibility with smaller industrial appliances




• Factory assembly lines
• Food and beverage production
• Woodworking industry


Why should I choose an electromagnetic lock over a conventional locking mechanism?


Electromagnetic locks like this one contain no moving parts to eliminate the risk of mechanical wear. You can also control electromagnetic locks remotely by switching their power source, making them ideal for safety applications.
คุณสมบัติ Value
Maximum DC Voltage 24V
Connection Type M12
Housing Material Aluminium
Range Magne
IP Rating IP67
Minimum Operating Temperature -20°C
Depth 35mm
Length 260mm
Standards Met CE Certified
Maximum Operating Temperature +50°C
Width 21.65mm
