2TLA010070R0000 ABB Jokab Safety Sentry USR10 Safety relay


ABB Jokab Dual-Channel Safety Switch Safety Relay, 24V dc, 4 Safety Contacts

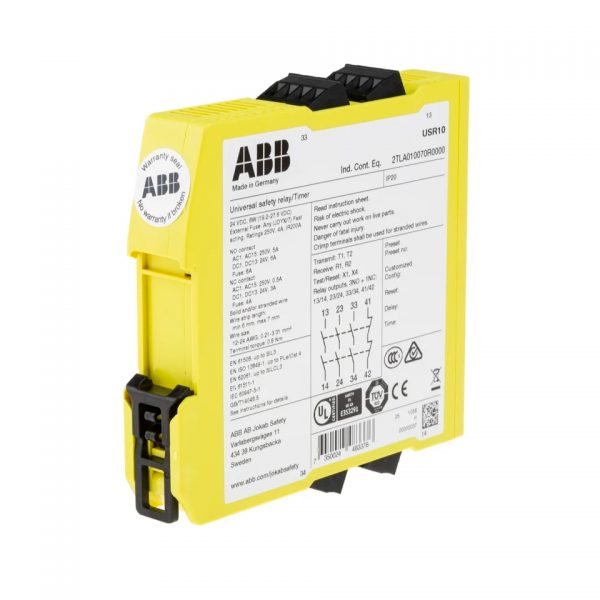

ABB Jokab Safety Sentry USR10 Safety relay

Sentry USR10 Universal safety relay with delayable relay outputs 3NO+1NC, +24 VDC power supply and screw terminals.
For monitoring of safety devices with contacts, 1 or 2 equivalent or antivalent channels, safety devices with OSSD outputs, two-hand devices, safety mats and safety edges/bumpers.
Timer function 0-999 seconds with a better accuracy than 1%: OFF-delay, ON-delay, Time bypass and Time reset.
A display on front facilitates configuration and troubleshooting by displaying error codes and error log. A custom configuration can be protected by password.
Manual or automatic reset selectable.

Sentry safety relays cover various types of safety applications up to PLe / SIL3.
Basic models provide reliable supervision of simpler safety functions, while universal models provide advanced features and high flexibility.
Models with display offer preset configurations and extensive information to further simplify troubleshooting.
Additional variants offer a high accuracy timer function of ± 1% and an adjustable time setting range from 0-999 s.
High output current capacity of up to 6 A can save the use of an intermediary contactor. Multi-reset allows up to 10 safety relays connected to one reset light-button.
All models are available with detachable push-in or screw terminals. Terminals and coding kit to mark removed terminals are available as accessories.

รหัสสินค้า: 2TLA010070R0000 หมวดหมู่:


ABB Jokab Safety Sentry USR10 Safety relay

ABB Jokab Safety Relay, 0.229kg Weight, 1.5s Maximum Response TIme – USR10 Series – 2TLA010070R0000 Sentry USR10 24VDC

Wave goodbye to hazards in your electrical setup thanks to this safety relay from ABB Jokab. Programmable time-delay contacts are on hand to set things in motion without the need for clock-watching. The unit’s handy 3-digit display lets you troubleshoot and configure settings for smooth operation. As it’s compatible with a 24V DC power supply, this is an ideal fit for low-power applications. Its yellow colour makes the unit stand out in industrial environments for easy identification. Screw terminals are simple to use, too, so setup is straightforward.


Features & Benefits

• IP54-rated enclosure means it’s protected from dust and low-pressure water jets from all directions
• Broad operating temperature range between -10°C and +65°C means it’s suitable for use in harsh industrial environments
• Lifespan of up to 160,000 operations for longevity
• Safety category 4 standard means you’re protected from electrical hazards even when faults occur



• Industrial automation
• Pressure sensitive mats
• Access control




What size is this product?

This unit has compact dimensions of 120 (D) x 22.5 (L) x 120mm (W), so it’s a useful option for setups where space is at a premium.
คุณสมบัติ Value
Supply Voltage 24V dc
Number of Channels 2
Safety Contacts 4
Function Safety Switch
Auxiliary Contacts 3
Reset Method Multi-Reset
Range Sentry
Safety Category ISO 13849-1 4
PL ISO 13849-1 e
SIL IEC 61508 3
Terminal Type Screw
Configurable Yes
Standards Met CE, CULus, EAC, RoHS Compliant
Width 120mm
Depth 120mm
Series USR10
Performance Level e
Length 22.5mm
