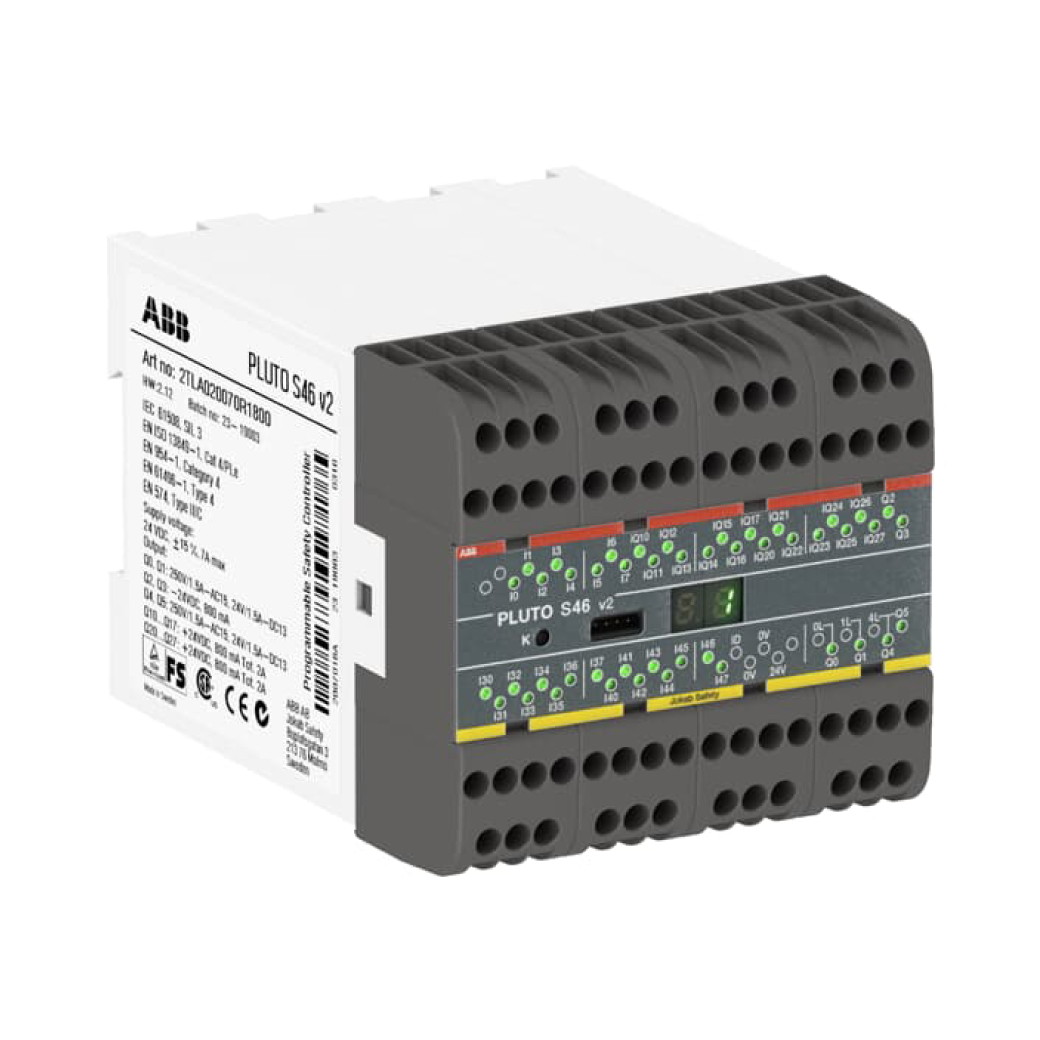

Single-Pluto
- Pluto S20
- Pluto S46
Single-Plutos are stand alone units and therefore perfectly suited for smaller systems that do not require communication with other Pluto units or gateways.
Ordering
-
- Minimum Order Quantity:
- 1 piece
-
- Customs Tariff Number:
- 8536411090
Popular Downloads
-
- Data Sheet, Technical Information:
- 2TLC010001C0202
-
- Instructions and Manuals:
- 2TLC172001M0210
Dimensions
-
- Product Net Depth / Length:
- 120 mm
-
- Product Net Height:
- 84 mm
-
- Product Net Width:
- 90 mm
-
- Product Net Weight:
- 0.65 kg
Technical
-
- Diagnostic Coverage:
- High
-
- Number of Inputs:
- Failsafe 40
-
- Number of Outputs:
- Failsafe (Transistor) 2
Failsafe (Relay) 4
Non-Failsafe 16
-
- Performance Level (PL):
- Up to e
-
- Protocol Type:
- MODBUS ASCII, StatusBus
-
- Rated Control Supply Voltage (Us):
- 24 V DC
-
- Supply Voltage:
- 24 V DC
Certificates and Declarations (Document Number)
-
- Declaration of Conformity – CE:
- 2TLC172011D0201
-
- Environmental Information:
- 2TLC172001D0201
-
- Instructions and Manuals:
- 2TLC172001M0210
-
- RoHS Information:
- 2TLC172006D0201
-
- TÜV Certificate:
- 2TLC172005D0201
Classifications
-
- Object Classification Code:
- K
-
- ETIM 4:
- EC001449 – Device for monitoring of safety-related circuits
-
- ETIM 5:
- EC001449 – Device for monitoring of safety-related circuits
-
- ETIM 6:
- EC000236 – PLC CPU-module
-
- ETIM 7:
- EC000236 – PLC CPU-module
-
- UNSPSC:
- 32151705
-
- E-Number (Sweden):
- 3860084
