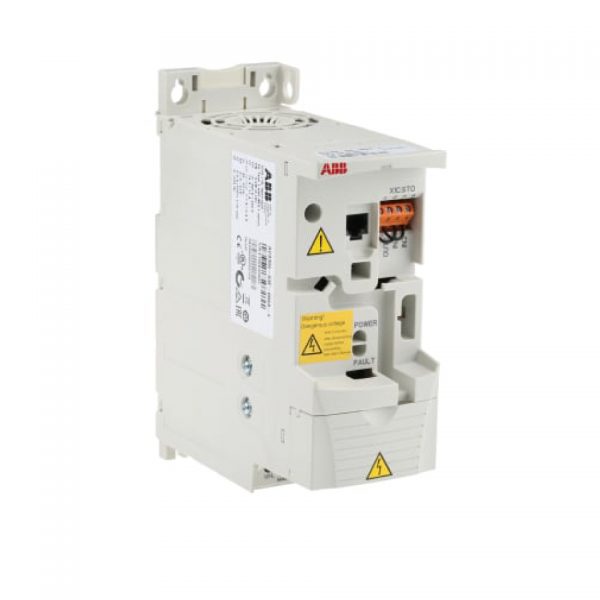

ACS355-03E-08A8-4
ABB Drives Inverter Pn 4,0kW, I2n 8,8A IP20.
The ACS355 drives are designed to meet the requirements of an extensive range of machinery applications in food and beverage, material handling, lifting, textile, printing, rubber and plastics, and woodworking applications.
The drive is user-friendly, yet it provides a wide range of built-in technology such as the safe torque off functionality and sequence programming, reducing the need for additional control electronics. The product offers options and diverse functionality to cater to the needs set for speed and torque control of AC induction and permanent magnet motors.
ABB Inverter Drive, 3-Phase, 8.8A Current Rating – ACS355 Series – ACS355-03E-08A8-4
Get your electric motor ticking over with this inverter drive from ABB. It regulates the torque and speed of the motor, enhancing productivity and saving energy. The drive is vector-controlled, so it can tackle applications where precision is key, like manufacturing and construction. A power rating of 4kW makes this a handy option for use with medium-power to high-power motors. A built-in electromagnetic compatibility filter reduces emissions, so you benefit from a safer workplace.
• Safe-torque-off function prevents unexpected startup, reducing the need for external safety components
• FlashDrop tool makes it quick and easy to set drive parameters
• Broad output frequency range between 0 and 600Hz so it’s a versatile choice
• IP20-rated housing means it’s touch-proof and protected from objects larger than 12mm
• FlashDrop tool makes it quick and easy to set drive parameters
• Broad output frequency range between 0 and 600Hz so it’s a versatile choice
• IP20-rated housing means it’s touch-proof and protected from objects larger than 12mm
Applications
• Industrial pumps
• Conveyor systems
• Construction industry
• Material handling
• Machine tools
• Conveyor systems
• Construction industry
• Material handling
• Machine tools
What temperature range can I use this inverter drive in?
This inverter drive has a wide operating temperature range between -10°C and +40°C, so it can withstand the harsh conditions of an industrial workplace.
How do I mount this unit?
For simple installation, this drive is panel-mounted.
ABB – ACS Range
| คุณสมบัติ | Value |
| Power Rating | 4 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 8.8 A |
| Series | ACS355 |
| For Use With | AC Motors |
| IP Rating | IP20 |
| Output Frequency | 0 → 600Hz |
| Drive Type | Vector Control |
| Mounting Type | Panel Mount |
| Filter Included | Yes |
| Control Panel | No |
| Function | Motor Control |
| Overall Depth | 187mm |
| Overall Length | 239mm |
| Special Features | Flash Drop Tool, Programmable Control Connection, Safe Torque-Off Function, Sequence Programming, Serial and Ethernet Communication, Speed Compensated Stop |
| Interface | PROFIBUS |
| Overall Width | 70mm |
| Standards Met | CE, C-Tick, cUL, EMC Directive 2004/108/EC, Environmental System ISO 14001, GOST R, Low Voltage Directive 2006/95/EC, Machinery Directive 2006/42/EC, Quality Assurance System ISO 9001, UL |
