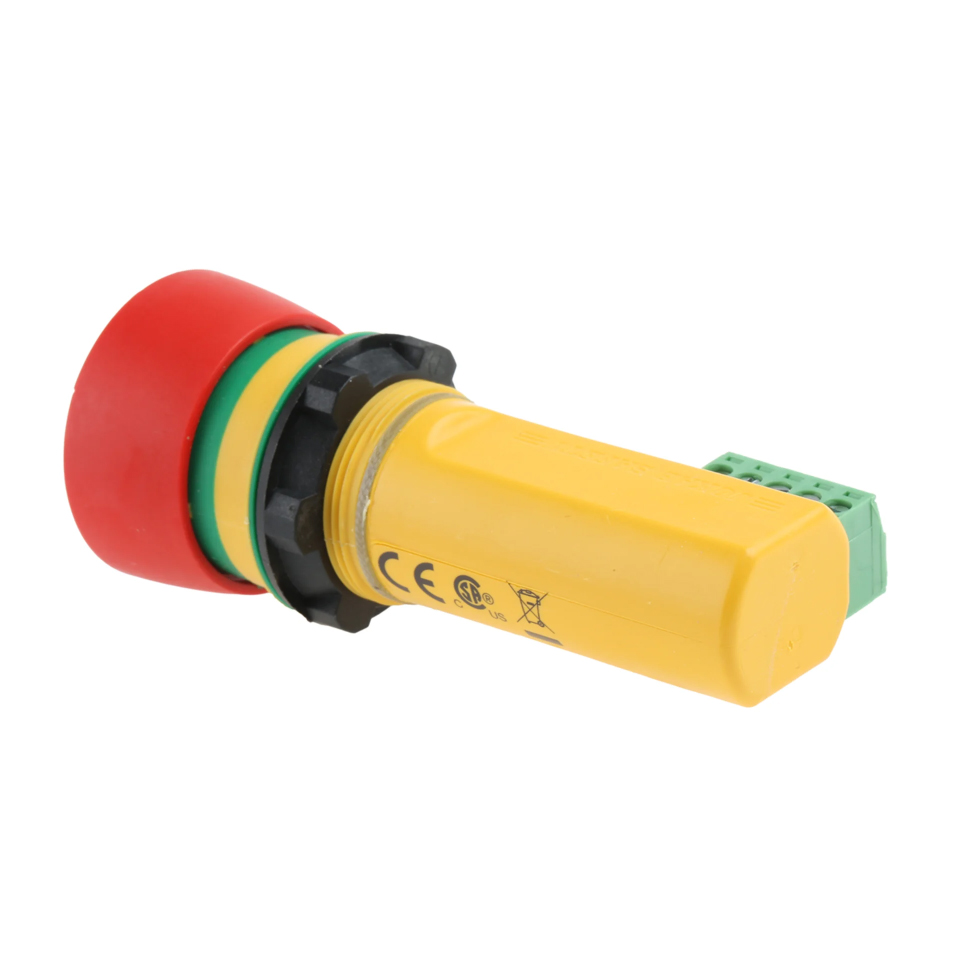

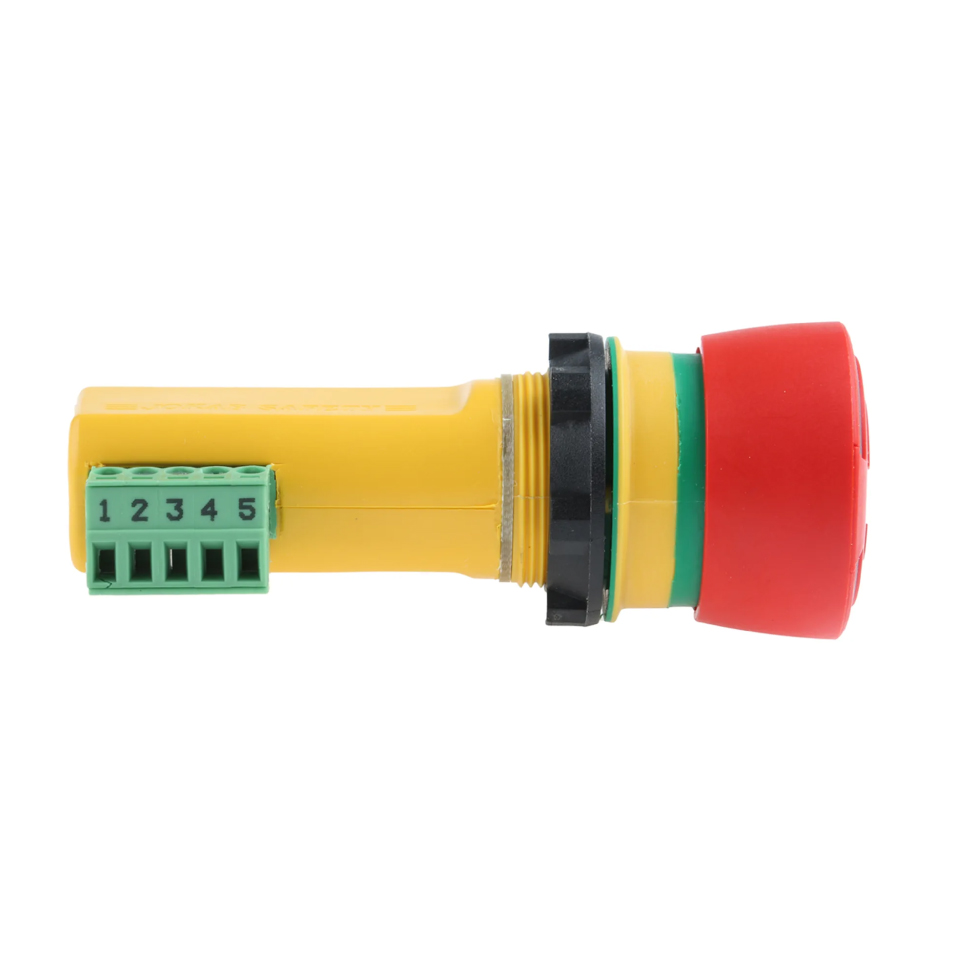

2TLA030054R0000 ABB Jokab Safety INCA 1 Tina Emergency stop button


ABB Jokab Safety INCA 1 Tina Emergency stop button

INCA emergency stop button with DYNlink signal for panel mounting. Status LED in button.Terminal block. 22.5 mm mounting hole.



ABB Jokab Safety INCA 1 Tina Emergency stop button

ABB 2TLA Series Red Emergency Stop Push Button, 1NC, 22.5mm Cutout, Panel Mount, IP20, IP65

ABB Emergency Stop Push Button, Illuminated LED Indicator, 32.5mm Diameter – 2TLA030054R0000


Attach this emergency stop push button from ABB to machinery, control panels and large equipment to stop activity quickly. It adds an extra level of safety in the workplace or in public buildings. The unit’s illuminated LED indicator shows when the button is activated, so you’ll always know its current status. An IP65 rating indicates that it’s resistant to dust and low-pressure jets of water, so is safe for use in contaminated environments. As this push button can operate in temperatures from -10°C to +55°C, it’s compatible with demanding conditions.


Features & Benefits


• Plastic material resists corrosion for reliable use in damp environments
• Red colour stands out in your existing setup to avoid accidental actuation
• Silver alloy gold-plated contacts are highly conductive for a stable connection
• Voltage rating of 24V DC for compatibility
• Panel mount for quick installation




• Industrial automation
• Production lines
• Public buildings


What’s the mechanical life of this emergency stop push button?


This button has a mechanical life of up to 50,000 operations, so you can rely on it for long service.


What’s the time delay for this push button?


This emergency stop has a short time delay of < 70μs, so it reacts fast.
คุณสมบัติ Value
Mounting Type Panel Mount
Cutout Diameter 22.5mm
Contact Configuration 1NC
Push Button Actuation Twist Release
Illuminated No
Series 2TLA
IP Rating IP20, IP65
Colour Red
Voltage Rating 24V dc
Auxiliary Contacts NO
Push Button Material Plastic
Housing Colour Black, Yellow
