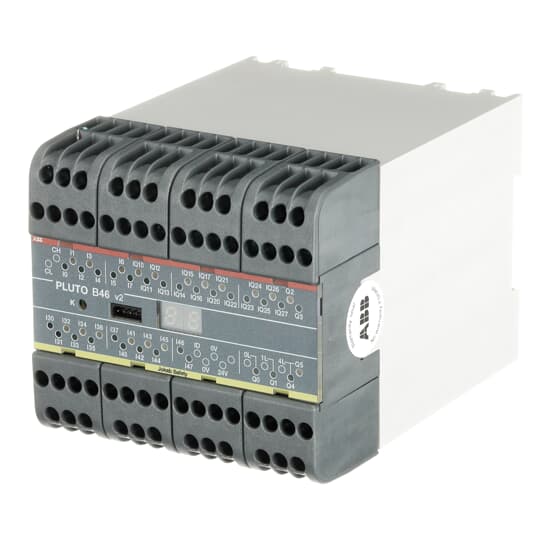

2TLA020070R1700 ABB Jokab Safety Pluto B46 v2 Programmable safety controller - Image 2

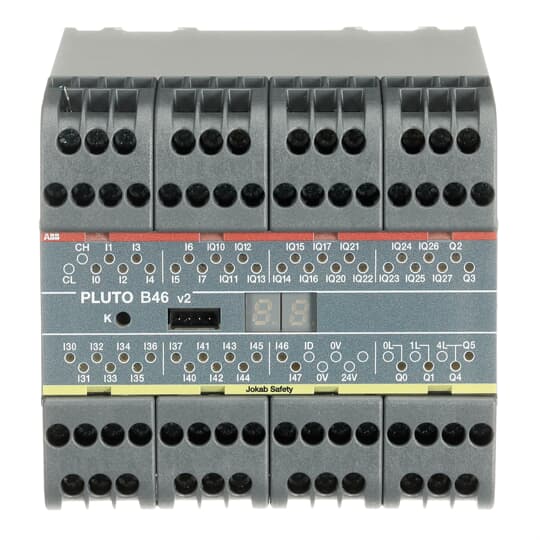

2TLA020070R1700 ABB Jokab Safety Pluto B46 v2 Programmable safety controller - Image 3

2TLA020070R1700 ABB Jokab Safety Pluto B46 v2 Programmable safety controller

2TLA020070R1700

ABB Jokab Safety Pluto B46 v2 Programmable safety controller

Pluto is a cost effective, powerful and compact safety PLC for all machine safety applications. Most safety devices on the market can be connected directly to Pluto and multiple safety sensors can be connected to a single input and still achieve the highest safety level. Programming is done easily in the accompanying software Pluto Manager.

Safety PLC with Pluto safety bus. Totally 46 I/O: 24 failsafe inputs + 16 non-failsafe outputs/failsafe inputs + 4 individually failsafe relay outputs + 2 individually failsafe transistor outputs.

รหัสสินค้า: 2TLA020070R1700 หมวดหมู่:

2TLA020070R1700

ABB Jokab Safety Pluto B46 v2 Programmable safety controller

คุณสมบัติ Value
Range Pluto
Series 2TLA
Number of I/O 46
Number of Safety Inputs 24
Number of Safety Outputs 6
Safety Category 4
SIL SIL 3
Supply Voltage 24 V dc
Contact Current Rating 1.5 A
Contact Voltage Rating 250 V ac, 50 V dc
IP Rating IP20, IP40
Width 90mm
Depth 118mm
Length 84mm
Dimensions 84 x 90 x 120 mm

Dimensions

  • Product Net Weight:
    0.65 kg

Safety Information

  • Performance Level (PL):
    Up to e

Technical

  • Diagnostic Coverage:
    High
  • Number of Inputs:
    Failsafe 40
  • Number of Outputs:
    Failsafe (Transistor) 2
    Failsafe (Relay) 4
    Non-Failsafe 16
  • Protocol Type:
    MODBUS ASCII, Pluto Safety Bus, StatusBus
  • Rated Control Supply Voltage (Us):
    24 V DC
  • Supply Voltage:
    24 V DC
