2TLA020046R0900 Eva Unique code Actuator ABB Jokab Safety
2TLA020046R0900 Eva Unique code Actuator ABB Jokab Safety - Image 2
2TLA020046R0900 Eva Unique code Actuator ABB Jokab Safety - Image 3

2TLA020046R0900 Eva Unique code Actuator ABB Jokab Safety

2TLA020046R0900

Eva Unique code Actuator ABB Jokab Safety

Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring.

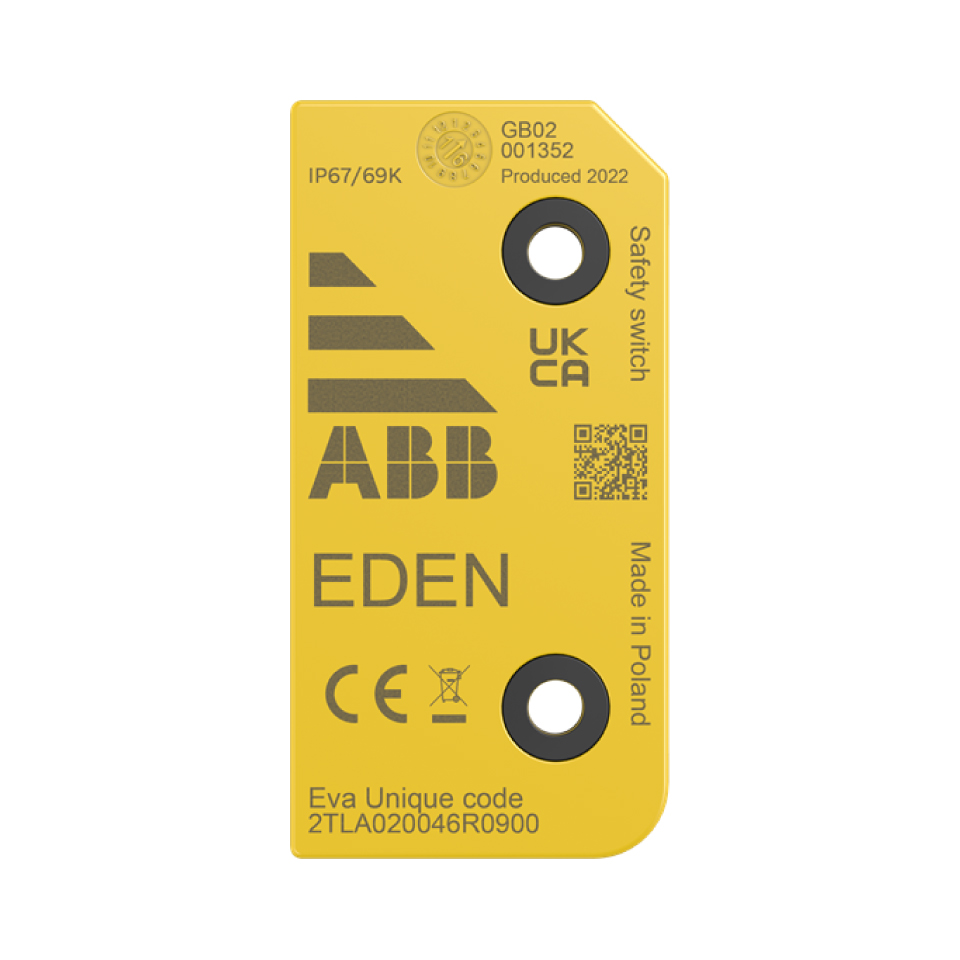

Eva actuator for use with Adam DYN and Adam OSSD sensors. With Eva unique Code, the pair forms a high level coded non-contact safety sensor. Four pieces of DA 2B spacer rings are included.

Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.

Eden is UL approved for use in US and Canada.

รหัสสินค้า: 2TLA020046R0900 หมวดหมู่:

2TLA020046R0900

Eva Unique code Actuator ABB Jokab Safety

ABB Jokab Non-Contact Safety Switch, 60mm Height, 15mm Operating Distance – 2TLA020046R0900 Eva Unique code



Use this non-contact safety switch from ABB Jokab to secure safety doors on your industrial equipment. It’s designed for use with Adam DYN and Adam OSSD actuators to form a complete monitoring assembly. The two units are installed on either side of your guard doors and trigger the machine to stop when the doors are opened, helping to prevent unsafe access to dangerous equipment. Thanks to its non-contact operation, this safety switch is protected against mechanical wear, so you can depend on it for long-term performance.



• Short operating distance of 15mm for increased sensitivity to guard-door movement
• Compact dimensions of 12 (L) x 30 (W) x 60mm (H) for installation in tight spaces
• Bright yellow housing for ease of identification in a busy setup
• Light weight of 26g to put minimal strain on your equipment



Applications



• Material handling equipment
• Oil and gas plants
• Chemical processing facilities



Eva actuator with unique code for use with Adam DYN/OSSD sensors in the Eden sensor system, yellow, 4pcs of DA 2B spacer rings are included.



Is this safety switch waterproof?

Yes, its IP69K rating indicates that it’s dustproof and fully protected against high-pressure, high-temperature water jets, making it suitable for use in areas where frequent cleaning is needed.

คุณสมบัติ Value
Housing Material Thermoplastic
Actuator Type Magnetic
Actuator Included No
Range Eden
Switching Distance 15mm
Series OSSD
IP Rating IP67, IP69K
Standards Met CE Certified
Depth 12mm
Length 37mm
Width 15mm
