2TLA020005R1100
JSHD4 AB Bottom part ABB Jokab Safety

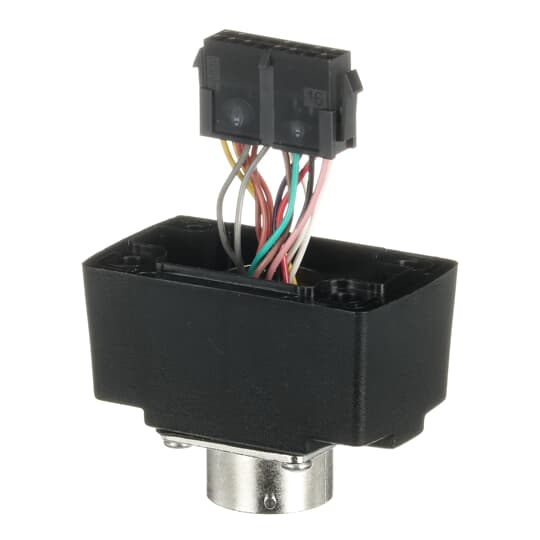

JSHD4 AB is a JSHD4 bottom part with a Cannon 12 pin male connector. It is used with any JSHD4 top part, except JSHD4-1, to form a complete three-position device.
Three-position devices are used to allow a limited movement of the machine when the operator is in the dangerous area, for example during troubleshooting, test running and programming.
Dimensions
-
- Product Net Depth / Length:
- 50 mm
-
- Product Net Height:
- 50 mm
-
- Product Net Width:
- 33 mm
-
- Product Net Weight:
- 0.091 kg
Technical
-
- Connection Configuration:
- Cannon 12 male pins
-
- Suitable For:
- JSHD4-2
JSHD4-2 black
JSHD4-3
JSHD4-4
JSHD4-5
Environmental
-
- Degree of Protection:
- IP65
